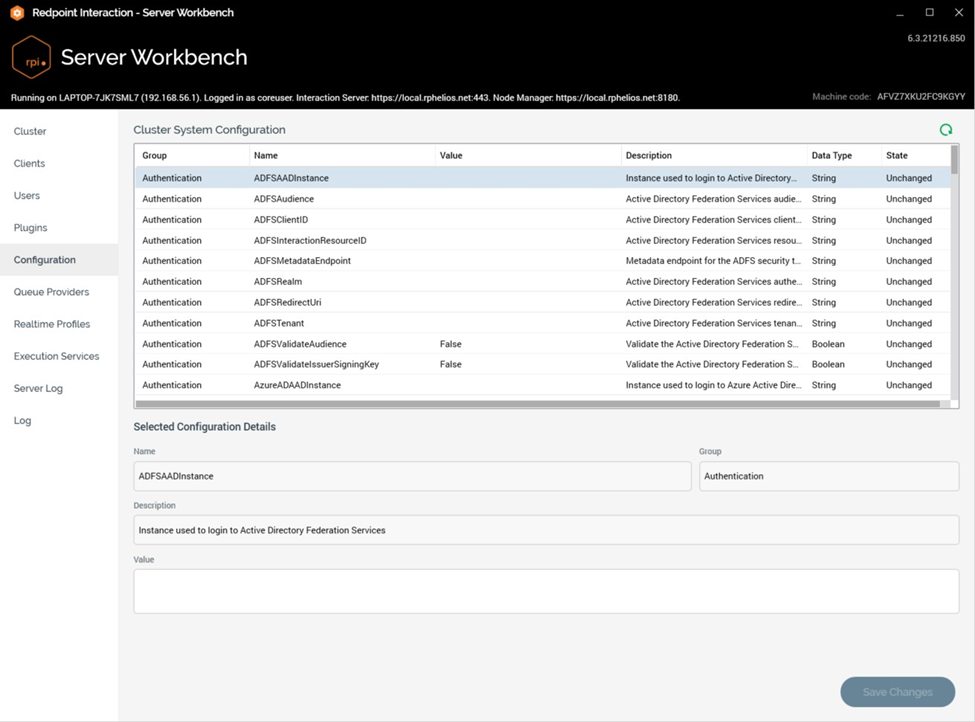

Admin: Configuration

Authentication

AFDSAADInstance

[blank]

Instance used to login to

Active Directory

Federation Services

Authentication

ADFSAudience

[blank]

Active Directory Federation Services audience that will be used during token validation

Authentication

ADFSClientID

[blank]

Active Directory

Federation Services client ID for the RPI native client

application

Authentication

ADFSInteractionResourceID

[blank]

Azure Active Directory resource ID representing the RPI Web API

Authentication

ADFSMetadataEndpoint

[blank]

Metadata endpoint for the ADFS security token service that JWTs will be issued from

Authentication

ADFSRealm

[blank]

Active Directory Federation Services authentication realm

Authentication

ADFSRedirectUri

[blank]

Active Directory Federation Services

redirect URI for the RPI

Web API

Authentication

ADFSTenant

[blank]

Active Directory Federation Services tenant the tokens are issued from

Authentication

ADFSValidateAudience

[blank]

Validate the Active

Directory Federation Services audience during token validation

Authentication

ADFSValidateIssuerSigningKey

[blank]

Validate the Active

Directory Federation Services security key that signed the security token

Authentication

AzureADAADInstance

[blank]

Instance used to login to Azure Active Directory

Authentication

AzureADAudience

[blank]

Azure Active Directory audience that will be used during token validation

Authentication

AzureADClientID

[blank]

Azure Active Directory client ID for the RPI native client application

Authentication

AzureADInteractionResourceID

[blank]

Azure Active Directory resource ID representing the RPI Web API

Authentication

AzureADRedirectUri

[blank]

Azure Active Directory

redirect URI for the RPI Web API

Authentication

AzureADTenant

[blank]

Azure Active Directory tenant the tokens are issued from

Authentication

EnableADFS

False

This server supports

Active Directory Federation Services authentication

Authentication

EnableAzureAD

False

This server supports Azure Active Directory authentication

Authentication

EnableOpenIdAuthentication

False

This server supports OpenID authentication

Authentication

OpenIdAudience

[blank]

OpenId application audience identifier

Authentication

OpenIdAuthorizationHost

[blank]

OpenId authorization host address

Authentication

OpenIdClientID

[blank]

OpenId client ID

Authentication

OpenIdCustomScopes

[none provided]

List of custom scopes to request for the OpenId

access token

Authentication

OpenIdEnableRefreshTokens

False

If checked, refresh tokens will be requested to renew access tokens

Authentication

OpenIdRedirectURL

[blank]

OpenId redirect address

Authentication

OpenIdLogoutIdTokenParamete r

id_token_hint

Query parameter name used to pass the id token on logout

Authentication

OpenIdUsePKCE

True

If checked, the Proof Key for Code Exchange authorization flow is used

Authentication

OpenIdValidateAudience

True

If checked, the

OpenIdAudience must match the audience name supplied in the access

token

Connectors

DotMailerExternalDynamicCont entSharedFolderPath

C:\temp\Redpoint\dotdigital

DotMailer shared external dynamic content output folder path

Connectors

DynUnsubscribeTempFolderPat h

C:\temp\Redpoint\DynUnsubs cribe

Dyn unsubscribe temporary output folder path

Connectors

FacebookDataFileFolderPath

C:\temp\Redpoint\Facebook

Offline Event\

Facebook data file folder path

Connectors

GoogleAdsCustomerMatchData

FileFolderPath

C:\temp\RedPoint\Google Ads Customer Match\

Google Ads Customer

Match data file folder path

Connectors

InstillerProcessEventFolderPath Format

C:\temp\Redpoint\Instiller\{0}\ Processed

Instiller process data file folder path format

Connectors

MessenteDataFileFolderPath

C:\temp\Redpoint\Messente\

Messente data file folder path

Connectors

MobileConnectDataFileFolderP ath

C:\temp\Redpoint\MobileConn ect\

MobileConnect data file folder path

Connectors

OutboundDeliveryEventFolderP ath

C:\temp\Redpoint\OutboundD eliveryCallbackService

Outbound Delivery event delivery output folder path

Connectors

SendGridEmailMetricsFolderPat h

C:\temp\Redpoint\SendGridCa llbackService

SendGrid email metrics output folder path

Connectors

SendGridWebAPIExternalConte ntProviderSettings

Content provider settings json

Connectors

SilverpopDataFileFolderPath

C:\temp\Redpoint\IBM Marketing Cloud\

Silverpop data file folder path

Connectors

SparkPostSaveEventFolderPath Format

C:\temp\Redpoint\SparkPost\{

0:N}\Processed\{1:N}\{2:yyyyMM-ddThh_mm_ss}

SparkPost Post data file folder path format

Connectors

UrbanAirshipDataFileFolderPath

C:\temp\Redpoint\UrbanAirshi p

UrbanAirship data file folder path

Database

OracleTNSAdminRootFolderPat h

The folder location of Oracle TNS admin configuration files (tnsnames.ora and sqlnet.ora)

Database

OracleTraceFileLocation

C:\temp\RedPoint

Interaction\Oracle\Traces

The folder location where the generated trace files

will be written

Database

OracleTraceLevel

0

0 = Tracing is disabled, 1 =

PublicAPI, 2 = PrivateAPI, 4 = NetworkAPI/Data, 7 =

All traces enabled

Database

OracleTraceOption

0

0 = Generates single trace file, 1 = Generates multiple trace files

Environment

AccessTokenExpiryMinutes

20

Number of minutes access tokens remain valid after being issued

Environment

AllowInsecureHttp

False

Controls whether the server allows insecure HTTP requests

Environment

AllowSavingLoginDetails

True

When a user successfully

logs into this server, allow the servername and credentials to be saved

Environment

AlwaysShowClientsAtLogin

False

Force the Choose Clients dialog to appear at login even if the user has access to only one client

Environment

ApplicationSupportURL

https://support.Redpointglobal .com/

Web page URL that points to the application support page

Environment

AuditTaskEvents

False

Controls if system task stop and start events should be audited

Environment

AzureADAADInstance

[blank]

Instance used to login to Azure Active Directory

Environment

AzureADAudience

[blank]

Azure Active Directory Audience that will be used during token validation

Environment

AzureADClientID

[blank]

Azure Active Directory client ID for the RPI native client application

Environment

AzureADInteractionResourceID

[blank]

Azure Active Directory resource ID representing the RPI Web API

Environment

AzureADRedirectUri

[blank]

Azure Active Directory

redirect URL for the RPI Web API

Environment

AzureADTenant

[blank]

Azure Active Directory tenant the tokens are issued from

Environment

DefaultAccountLockoutTimesp an

5

Number of minutes a user is locked out for after

MaxFailedAcessAttempts

BeforeLockout is reached

Environment

DeploymentFileShare

\\[server]\RPI Deployment

Path of the deployment files share

Environment

EnableADFS

False

This server supports

Active Directory Federation Services authentication

Environment

EnableAzureAD

False

This server supports Azure Active Directory authentication

Environment

EncryptionKey

C:\Resonance123

System wide encryption key

Environment

GlobalFileOutputAllowAllServer Locations

True

If checked, clients are allowed to specify any server location for data extract and export activities

Environment

GlobalFileOutputAllowClientOve rrides

True

If checked, clients can configure and use the local FileOutput configuration settings

Environment

GlobalFileOutputDirectory

C:\RPI File Output

Folder used to store any file assets exported via interactions or selection rules

Environment

HelpStartPageURL

\\[server]\RedpointInteraction

Help/index.html

URL of the help start page

Environment

HelpTrainingStartPageURL

http://Redpoint-

cbts.Redpointglobal.com/Red point-Interaction-CBT-

Links.html

URL of the training materials start page

Environment

ListenerQueueIsEnabled

False

If checked, the system will monitor the listener queue and execute any packages found

Environment

ListenerQueueMaxBatchSize

50

The maximum number of listener queue packages processed by a single execution thread

Environment

ListenerQueuePath

[blank]

The listener queue path

Environment

ListenerQueueThreadPoolSize

10

The number of listener queue packages that can be processed concurrently

Environment

ListenerQueueTimeoutMinutes

60

The maximum number of minutes to allow for processing a listener

queue package

Environment

ListenerQueueUseMessageLoc ks

True

If set and supported by the queue provider, messages remain locked on the queue until processed

Environment

MapControlConfiguration

Bing

Map control API configuration

Environment

MaxFailedAttemptsBeforeLock out

5

Number of access attempts allowed before a user is locked out (if lockout is enabled)

Environment

OperationalDatabaseType

SQLServer

The type of database server on which the cluster database is to be created

Environment

PasswordRequireDigit

True

User passwords require a

digit

Environment

PasswordRequiredLength

6

Minimum required length of user passwords

Environment

PasswordRequireLowercase

True

User passwords require a lower case letter

Environment

PasswordRequireNonLetterOrDi git

True

User passwords require a non-letter or digit

Environment

PasswordRequireUppercase

True

User passwords require a lower case letter

Environment

ServerDateTimeSource

1

0 = Server OS, 1 =

Operational Database

Instance

Environment

ServiceHostName

[not set]

 Host name client connects to

Environment

ServiceHostPortNumber

443

 Port number client connects on the service host

Environment

SMTPCredentials

[not set]

The credentials used to sign into the SMTP server

Environment

SMTPEnableSSL

False

Check if an SSL connection is required to connect to the SMTP server

Environment

SMTPPortNumber

25

Port number used to connect to the SMTP server

Environment

SMTPServerName

10.100.1.10

 SMTP server to be used by the application for emailing Environment

Environment

SMTPUseCredentials

False

Controls if authentication credentials are passed through to the SMTP server

Environment

TaskTimeout

60

Number of minutes a task can execute before it is cancelled. Applies to queue tasks only

Environment

TriggerCheckCriteriaInterval

60

 Number of seconds interval between checking

if trigger constraints have been met

Environment

TriggersMaxDaysInactive

180

Maximum number of days a trigger can remain in an activated state without being fired

Environment

UserLockoutEnabledByDefault

True

If true, will enable user lockout when users are created

Environment

WorkflowPauseAllTimeout

10

The timeout limit in minutes that the workflow manager will wait for all workflows to pause

Integration API

APIAccessTokenExpiryMinutes

60

Number of minutes access tokens remain valid after being issued

Integration API

ApiMaxSearchResultCount

256

Number of managed asset search results returned per call

Integration API

ApiSearchClientNames

[String Values]

List of RPI client names on which to apply ECP managed asset indexing

Integration API

ApiSearchIndexingEnabled

True

If checked, the Integration API ECP managed asset indexing service will be enabled

Integration API

ApiSearchIndexingInterval

60

The interval in minutes between ECP managed asset indexing jobs

Integration API

ApiZendeskToken

12CAA197-ED6C-4DCC-B920-

F4CC769F2B4C

Zendesk endpoint authorization token

Personalization

EmailSenderAddress

admin@Redpointglobal.com

 System email sender

address

Personalization

PasswordResetSubject

Resonance Password Reset

 Email subject to be used for password reset email

Web

GoalDrivenAssetWebServiceAd dress

The Redpoint machine learning web service address
