Admin: Containerization

Overview

RPI is distributed as container images deployable on Kubernetes using the RPI Helm Chart. This guide covers container configuration, health checks, and application settings.

Container images

The following container images are included in the RPI Helm Chart:

All images are pulled from a single registry using a shared tag:

global:
  deployment:
    images:
      registry: rg1acrpub.azurecr.io/docker/redpointglobal/releases
      tag: "7.7.20260325.1521"

The chart constructs each image path as {registry}/{service-name}:{tag}.

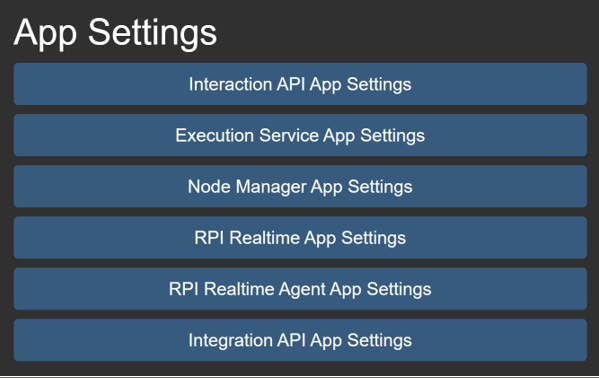

Application settings

RPI services are configured through two mechanisms:

• Environment variables: set via the Helm overrides file. The chart translates your overrides into the correct environment variables for each service.

• Cloud secret managers (SDK provider): sensitive values read directly from Azure Key Vault, AWS Secrets Manager, or Google Secret Manager at runtime.

For the complete list of all configurable settings, defaults, and descriptions, use the Helm Assistant Values Reference (Reference tab).

How the Helm Chart manages settings

In v7.x, all application settings are managed by the Helm chart. You do not need to create appsettings.json override files. Instead, configure settings in your overrides file and the chart translates them to the correct environment variables.

For example, to configure the execution service:

executionservice:
  internalCache:
    enabled: true
    provider: filesystem
    backupToOpsDBInterval: "00:00:20"
    maxNumberRetries: "100"
    maxRetryDelay: "00:02:00"
  jobExecution:
    maxThreadsPerExecutionService: 50
    taskTimeout: 60

The chart translates these to environment variables like InternalCache__BackupToOpsDBInterval, RPIExecution__MaxThreadsPerExecutionService, etc.

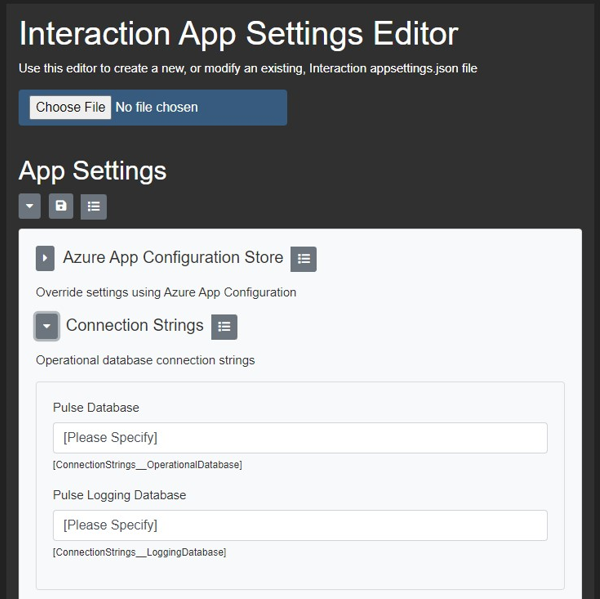

Connection strings

All services require connection strings to the operational and logging databases. How these are provided depends on your secrets management provider:

File output directory

All RPI services that produce file output (CSV exports, reports) require access to a shared directory. This is configured via the storage.persistentVolumeClaims.FileOutputDirectory section in your overrides:

storage:
  persistentVolumeClaims:
    FileOutputDirectory:
      enabled: true
      claimName: rpifileoutputdir
      mountPath: /rpifileoutputdir

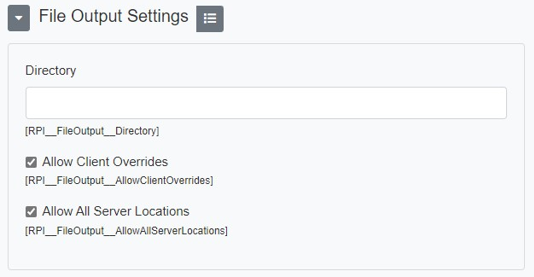

The mount path can be overridden per tenant via the FileOutputDirectory system configuration setting in the RPI client interface.

TLS and ingress

HTTPS is terminated at the ingress controller. RPI services listen on HTTP (port 8080) internally, and the ingress controller handles TLS termination for all external traffic.

The TLS certificate can be provided in several ways depending on your setup:

Example ingress configuration:

ingress:
  className: nginx
  domain: example.com
  tls:
  - secretName: ingress-tls
    hosts:
    - rpi-interactionapi.example.com
    - rpi-deploymentapi.example.com
  hosts:
    config: rpi-deploymentapi
    client: rpi-interactionapi
    realtime: rpi-realtimeapi

The chart creates Ingress resources with the specified TLS configuration. No TLS configuration is needed on the RPI containers themselves.

Health checks

RPI services expose HTTP health check endpoints for Kubernetes liveness and readiness probes:

What each endpoint checks

Example response

{
  "status": "Healthy",
  "results": {
    "NodeManagerHeartbeat": {
      "status": "Healthy"
    }
  }
}

Probe configuration

The Helm chart configures probes automatically with tuned defaults. You can override probe settings per service if needed, but the defaults are suitable for most deployments.

Secrets management

v7.7 supports three secrets management providers. Choose based on your infrastructure:

For full details, see the Secrets Management Guide.

Cloud identity

RPI services authenticate to cloud resources using workload identity:

Configure in your overrides:

cloudIdentity:
  enabled: true
  serviceAccount:
    mode: shared        # shared | per-service
    name: redpoint-rpi
  azure:
    managedIdentityClientId: "..."
    tenantId: "..."

In per-service mode, cloud identity annotations are opt-in per service:

executionservice:
  cloudIdentity: true   # only this service gets workload identity

Logging

Logging levels are configurable per service. The chart defaults all channels to Error. Override per service:

executionservice:
  logging:
    default: Error
    database: Error
    rpiTrace: Error
    rpiError: Error
    console: Error

The Realtime API has additional logging channels:

realtimeapi:
  logging:
    realtimeagent:
      default: Error
      database: Error
      rpiTrace: Error
      rpiError: Error
      console: Error
    realtimeapi:
      default: Error
      endpoint: Error
      shared: Error
      plugins: Error
      other: Error
      console: "false"

Diagnostics

Enable .NET diagnostics tools for troubleshooting:

diagnosticsMode:
  dotNetTools:
    enabled: true
    useGcDump: true
    useCounters: false

When turned on, the chart adds DOTNET_BUNDLE_EXTRACT_BASE_DIR and RPI__Diagnostics__UseDotNetTools__* environment variables to all applicable services.

ServiceMesh (Linkerd)

The chart supports Linkerd integration for mTLS and traffic policy:

serviceMesh:
  enabled: true
  provider: linkerd
  podAnnotations:
    config.linkerd.io/skip-outbound-ports: "443"
    config.linkerd.io/proxy-outbound-connect-timeout: 240000ms
  servers:
  - name: aks-rpi-interactionapi
  - name: aks-rpi-executionservice

Per-service opt-out: deploymentapi: { serviceMesh: false }
