Cached attribute list actions
Create new Cached Attribute List

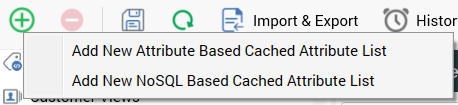

Invocation of Create new Cached Attribute List at the Configuration Workbench toolbar displays a sub-menu:
![](../__attachments/3904932594/att_1_for_3858497606.png?inst-v=c3007bf4-8f91-43d3-9633-90859273c945)
Selecting an option adds a new cached attribute list of the chosen type to the grid, placing it in an appropriate alphabetical position. Its name is “New Cached Attribute List”. An incrementable integer can be appended to the default name to ensure uniqueness.
The new list’s state is “Added”, and it’s selected automatically.
Configure existing Cached Attribute List
This is carried out in the simple fields in the Selected Cached Attribute List section, by selecting an existing list. If you make changes to a list that has been saved previously, its state is set to “Edited”.
Delete selected Cached Attribute List
This is carried out in the toolbar. A deleted list's state is set to “Deleted”. Its row text color is set to red. You may no longer select a deleted row.
Save changes to Cached Attribute Lists
Save is carried out using the Save changes to Cached Attribute Lists toolbar button. Any changes you have made are validated, and any validation errors are advised in a dialog. You may not proceed with the Save until you have resolved them. Following a successful save, lists are displayed in alphabetical order. All lists' states are updated to “Unchanged”. Any deleted lists are removed from display.
Refresh
This option reloads the contents of the interface from the operational database. If changes have been made, a “Save Changes?” dialog is shown.
