RPI v7.1 release notes
Overview
Available April 2023
Redpoint Interaction (RPI) v7.1 increases the containerized product’s operational readiness through the addition of a number of enhancements, and the reintroduction of a number of plugins supported in v6.6.
Major enhancements: this section describes the significant changes that have taken place in RPI v7.1.
Supported plugins: this section details the initial set of external provider integration plugins supported in RPI v7.1.
Other enhancements: this section documents other features added in RPI 7.1.
Prior to running the RPI v7.1 client, please download and install the following:
ASP.Net Core runtime for .NET 7.0
.NET Desktop runtime for .NET 7.0
These can be found at: https://dotnet.microsoft.com/en-us/download
Major enhancements
This section describes major changes to RPI in version 7.1.
Upgrading RPI from v6.x to v7.1
Three new Deployment API endpoints have been made available to assist in the upgrade of an existing customer’s RPI v6.x cluster to v7.1:
/api/v6upgrade/environment-variables: gets the environment variables required for the upgrade.
api/v6upgrade/appsettings/{appSettingsType}: gets the service appsettings required for the upgrade.
/api/v6upgrade/plugin-check: checks compatibility of plugins used in v6.x with v7.1.
Please note that upgrading from RPI6.x to v7.1 will require liaison with Redpoint SupportPlease contact support@redpointglobal.com for guidance.
User story reference: 16501
Workflow Prioritization

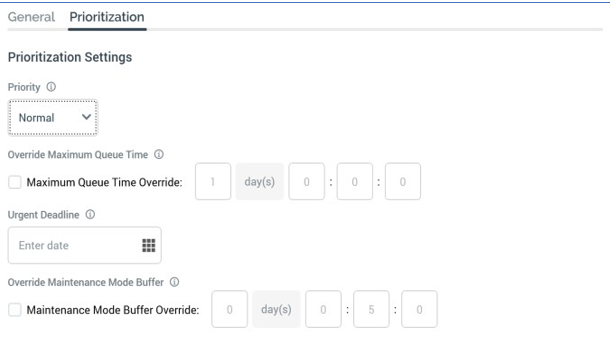

A new Prioritization tab has been made available at all interaction workflow trigger types. Please see the Reference Guide for full details.
![Screenshot 2024-04-02 140133.png](../__attachments/3920265293/Screenshot%202024-04-02%20140133.png?inst-v=c3007bf4-8f91-43d3-9633-90859273c945)
It allows you to:
Set the priority of workflow activities.
Override the maximum time that an activity can be queued prior to execution.
Specify the date and time at which an activity becomes Urgent priority.
Override the time prior to scheduled maintenance during which activities will be queued.
User story reference: 16524
Telemetry
A new Telemetry tab has been added at the Operations interface.
![Screenshot 2024-04-02 140253.png](../__attachments/3920265293/Screenshot%202024-04-02%20140253.png?inst-v=c3007bf4-8f91-43d3-9633-90859273c945)

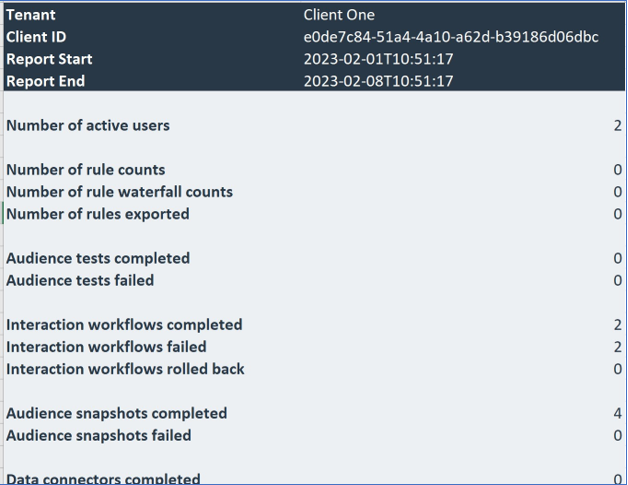

The tab allows for the generation of an Excel Telemetry Report, which includes Audit Metrics, Active Triggers, Database Queries, Administration Collections, Designers – In Use and Designers - Not In Use tabs.
![Screenshot 2024-04-02 140333.png](../__attachments/3920265293/Screenshot%202024-04-02%20140333.png?inst-v=c3007bf4-8f91-43d3-9633-90859273c945)
User story reference: 16700
Supported plugins
The following additional external provider connector plugins are supported in RPI v7.1.
Caches
Azure Redis Cache
User story reference: 15500
CosmosDB
User story reference: 15489
CRM Channel
Salesforce.com
User story reference: 15496
Data Onboarding Channels
Facebook
User story reference: 15493
Email Channels
Salesforce Marketing Cloud
User story reference: 15490
SendGrid
User story reference: 15459
LuxSci
User story reference: 15525
External Content Providers
Amazon AWS S3
User story reference: 15497
Azure Storage
User story reference: 15499
FTP/SFTP
User story reference: 15498
General Channel
Outbound Delivery
User story reference: 15542
Page Element
Alchemer Page
User story reference: 15623
Push Notification Channel
Azure Notification & Direct
User story reference: 15492
Queues
Azure Event Hubs
User story reference: 15502
Azure Storage Queues
User story reference: 15503
Azure Service Bus
Concurrent queues/async calls
User story reference: 15501, 15460
SMS Channel
Twilio
MMS support
User story reference: 15491, 16621
ZenDesk reference: 87958, 90325
Web Adapter
Google Analytics v4 support
User story reference: 16555
ZenDesk reference: 89887
Web Channel
Alchemer
User story reference: 15505
Alchemer page element
User story reference: 15623
Other enhancements
This section describes additional changes to RPI in version 7.1.
Training Aids
RPI's Build an Email and Send Emails training aids have been deprecated, and are no longer available in the product.
User story reference: 17185
Interaction Designer
When writing data to temporary tables at data extract offers and export activities, space characters are now retained in column headers, and sort columns are not appended to the tables in question.
User story reference: 16498
ZenDesk reference: 89055
Web Form
The web form Redirect URL property, which was mandatory, is now optional.
User story reference: 17130
Zendesk reference: 95039
Smart Asset
A new [OfferHistory]_Content_Meta table allows for the persistence of file metadata, configured at a Batch Outbound-enabled smart asset or content element therein, at offer execution. Metadata is stored in JSON format, e.g.:
{"StringMeta":"Asset Meta","IntMeta":1.0,"DateMeta":null,"DecimalMeta":null}
User story reference: 14473
Zendesk reference: 79905
Realtime Decision
Two new system configuration settings have been added, which allow for the selection of value lists from which values may be selected when configuring Link Click and Page Visit criteria in the web realtime decision.
User story reference: 17332
Zendesk reference: 99317
Data Connectors
The ability to export, import and copy to other client(s) has been introduced at the Data Connectors interface.
User story reference: 17439
Zendesk reference: 101363
Widget
The following enhancements have been made at the Channel Overview widget:
The ability to specify a date range for the data to be displayed in the chart.
User story reference: 17369
Zendesk reference: 99958
The ability to display the cumulative sum of values displayed for each series shown in the chart.
User story reference: 17370
Zendesk reference: 99958
Interaction Triggers Report

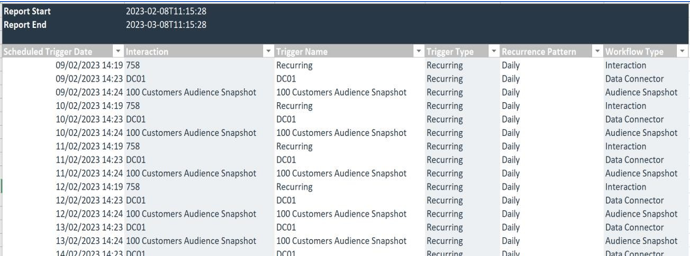

A new Scheduled Trigger Execution Excel report has been made available, and can be initialized at the Interaction Triggers Report interface. The report lists trigger instances (recurring, scheduled, manual with constraints, data connectors and audience snapshots) that are yet to fire.
![Screenshot 2024-04-02 142913.png](../__attachments/3920265293/Screenshot%202024-04-02%20142913.png?inst-v=c3007bf4-8f91-43d3-9633-90859273c945)
User story reference: 16831
Zendesk reference: 92982
Deployment API
A new Deployment API endpoint facilitates the scheduling of maintenance mode at an RPI cluster.
User story reference: 17187
The plugin compatibility endpoint has been exposed as a standalone executable.
User story reference: 17757

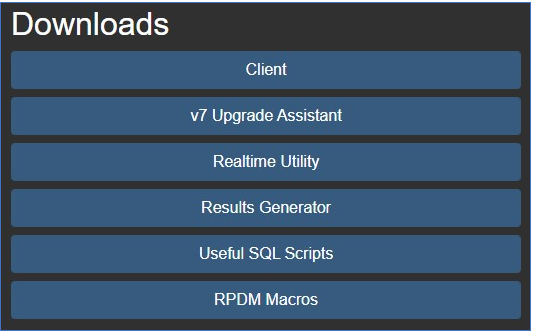

The RPI Configuration Home Page has been enhanced to allow for the downloading of specific deployment files folders.
User story reference: 17841
![Screenshot 2024-04-02 143108.png](../__attachments/3920265293/Screenshot%202024-04-02%20143108.png?inst-v=c3007bf4-8f91-43d3-9633-90859273c945)
Service Control Endpoints
New GET service control endpoint methods have been made available to facilitate management of the Node Manager and Execution Services:
/api/operations/status
/api/operations/start
/api/operations/stop?waitTimeout=500
User story reference: 17336
Logging
Support for the writing of RPI log messages to Loggly and NewRelic has been added.
User story references: 15013, 15014
Plugins
RPI Azure plugins now support the use of Azure Identity for authentication with Azure services.
User reference: 15109
Miscellaneous
RPI now supports v7.0 of Microsoft .NET.
User story reference: 17445
