Selection Rule Review Window
Overview

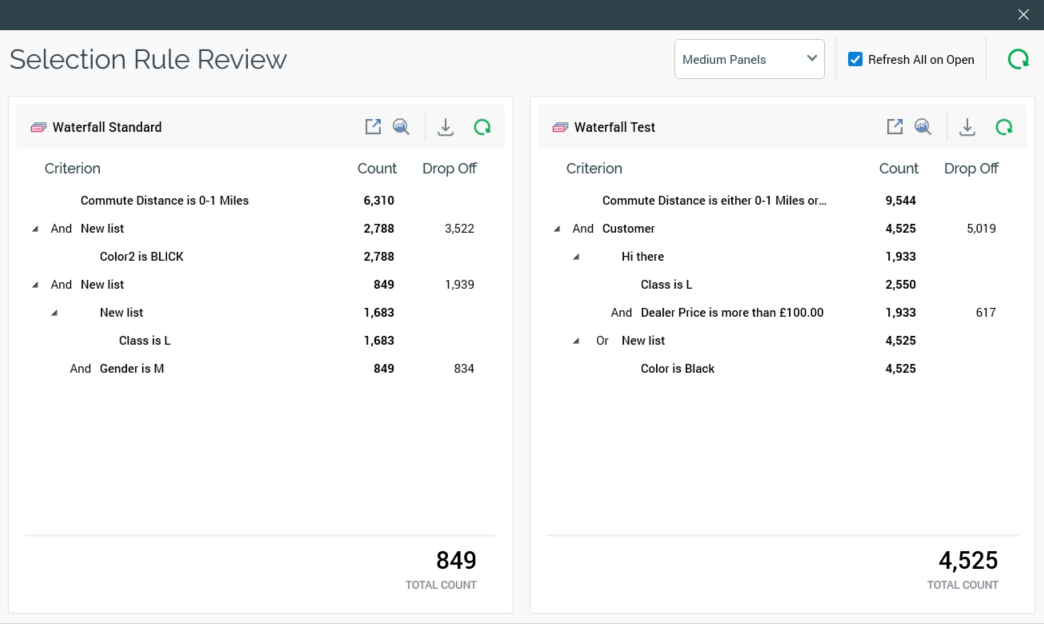

The Selection Rule Review Window is a non-modal Window, which is displayed on invocation of Review at the Rule Designer toolbar. It is used to compare selection rules’ waterfall counts side-by-side.
![](../__attachments/3904936257/att_4_for_3861774449.png?inst-v=c3007bf4-8f91-43d3-9633-90859273c945)
The Window contains the following:
Toolbar
Exposing the following:
[Panel size]: a dropdown, exposing the following values:
Short Panels
Medium Panels (default)
Tall Panels

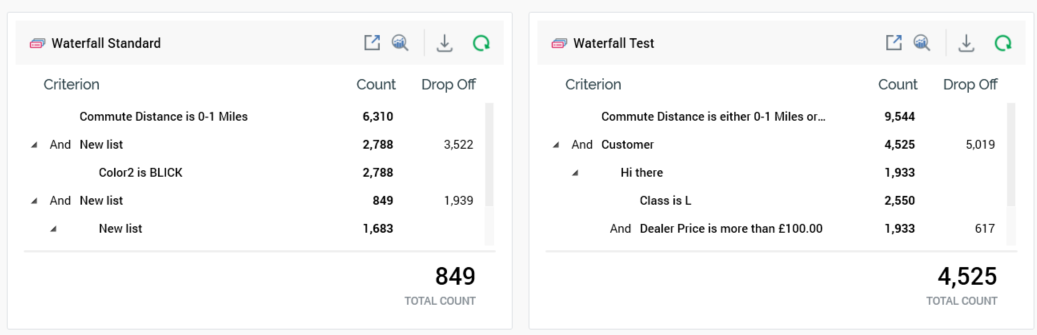

The property allows you to specify how tall panels shown in the Window should be...e.g. Short Panels:
![](../__attachments/3904936257/att_3_for_3861774449.png?inst-v=c3007bf4-8f91-43d3-9633-90859273c945)

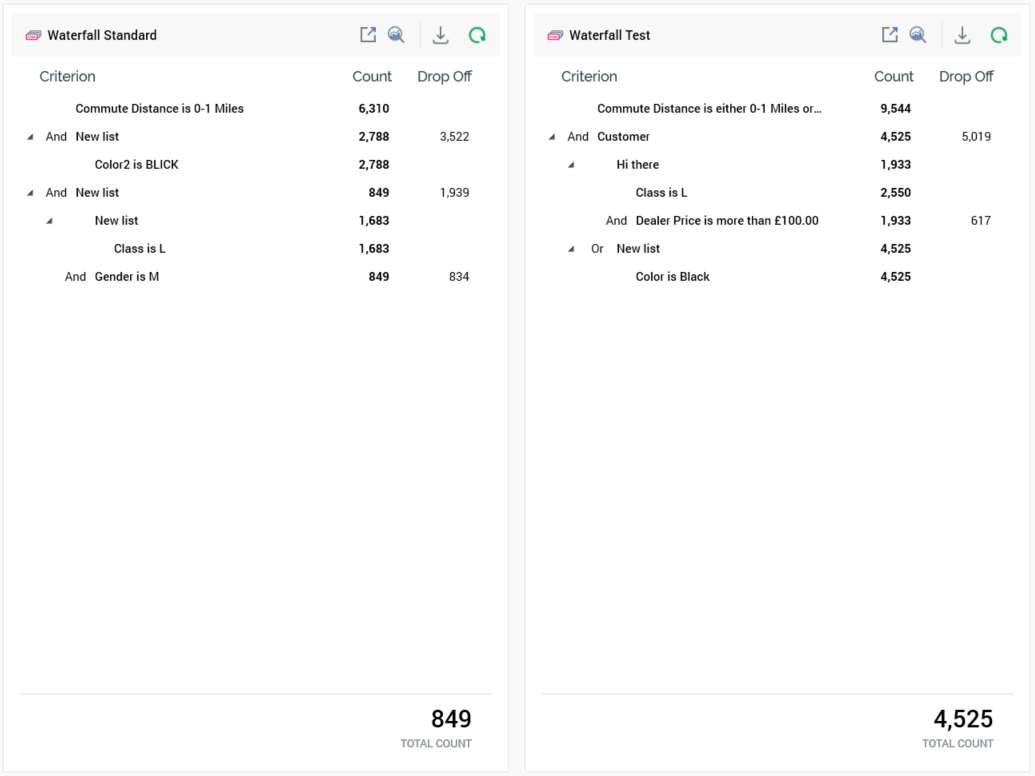

...vs. Tall panels:
![](../__attachments/3904936257/att_5_for_3861774449.png?inst-v=c3007bf4-8f91-43d3-9633-90859273c945)
Refresh All On Open: this checkbox is checked by default. When checked, all rules displayed in the Window are refreshed automatically on initial display. When unchecked, no counts are shown, and a message displays at the bottom of each rule stating “Click the Refresh button above to start loading results”.
Refresh All: selecting this button refreshes counts at all rules displayed in the workspace.
Rules
The standard and basic selection rules shown within the Rule Designer at the Window's invocation are displayed, with the panel size used accordant with the current selection. The following are displayed at each rule:
Name
Toolbar:
Pop Out
View Insights
Save results as an Excel document
Refresh
Waterfall Counts
Total Count
