Tuple Data Type Support

RPI supports a Tuple data type at database column attributes. A tuple is a sequence of elements with a specific structure. Here is an example of a tuple value, which might be stored in a database column attribute:

('SPAM',99,4.52,'2017-10-01')

When you drag in an attribute with the Tuple data type to create a standard selection rule criterion, the following criterion types are available:

• Compare to Constant

• Compare to Attribute

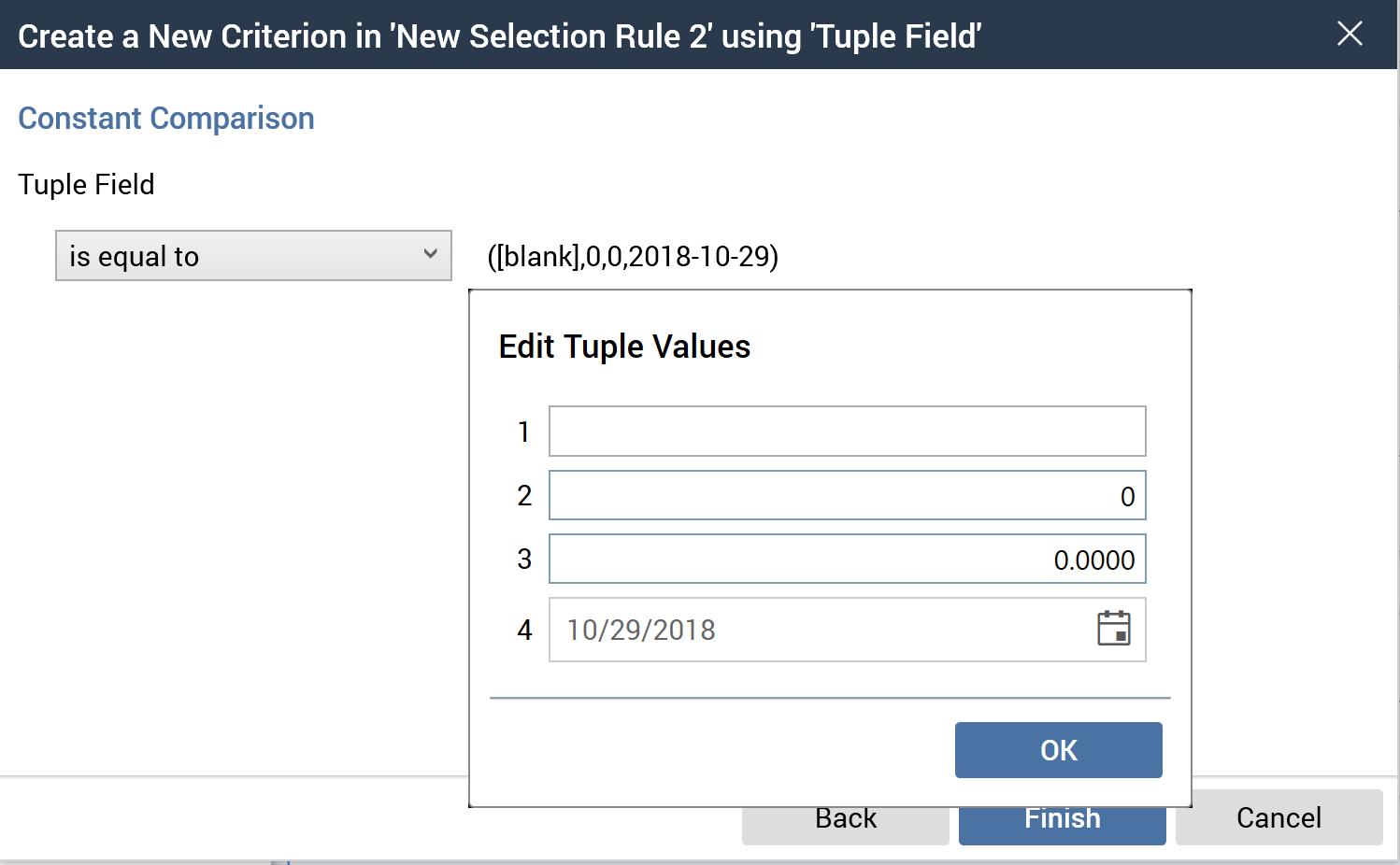

When building a Compare to Constant criterion, and specifying a tuple value, the Edit Tuple Values dialog is displayed:

Each tuple element is displayed in a numbered list, with a value displayed at each. Data type-specific controls (String, Integer, Decimal, Date) facilitate data entry at the same.

Tuples are also supported as elements within database column values with the following data types:

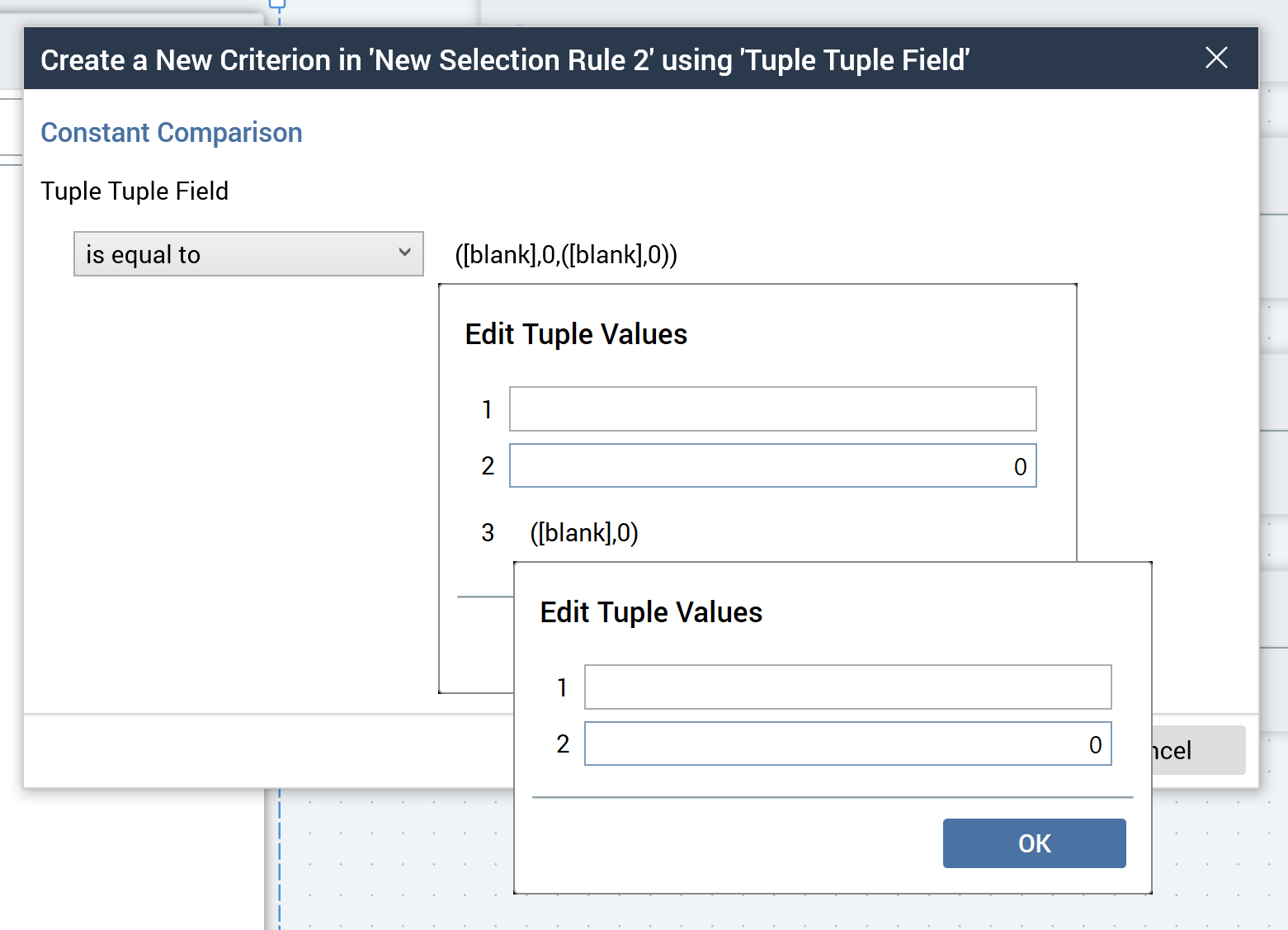

Tuple: nested Edit Tuple Values dialogs are used to set values at the same.

• List

• Map

Note that the following operators are not supported when building a tuple criterion at a Google BigQuery database: >, >=, <, <=.
