LuxSci functional guide

Overview

The following guide provides information about the capabilities of LuxSci within Redpoint Interaction (RPI), how sending emails/synchronizing state data works, and links to other resources.

Key capabilities

The LuxSci connector provides the following key capabilities:

• Channel configuration

• The ability to send emails via an Interaction using an Offer Activity and Queue Listener

• Receiving state/disposition data via the Channel Synchronization Task

• Using state/disposition data as inputs to additional workflows and downstream activities

Unique features

The LuxSci connector supports the following features:

• Ability to send secure messages

• Ideal platform to use for Queue Listeners as they support timely delivery of emails

• Support for BCC within the channel configuration

• Various channel configuration options to optimize performance for outbound and inbound processing

• The ability to inspect Mail Merge files for auditing purposes

• The ability to support custom headers at the channel level

• The ability to import email reports using bulk method

Process flow

The following flow chart shows how the LuxSci channel works within both outbound fulfillment and inbound state synchronization.

Outbound processing

Inbound processing

Outbound fulfillment

The LuxSci connector performs the following steps when it is used as part of an outbound Offer Activity.

Step 1

Initiate a connectivity test to validate the credentials configured in the channel are valid.

Method

POST

Endpoint

https://rest.luxsci.com/perl/api/v2/auth

Request Body

{
  "user": "<user_name>",
  "pass": "<luxsci_password>",
  "token": "<api_token>",
  "secret": null,
  "debug": null,
  "date": "1689322869",
  "signature": "<signature>"
}

Response Body

{
  "auth": "<auth_value>",
  "success": 1
}

Method

GET

Endpoint

https://rest.luxsci.com/perl/api/v2/user/<luxsci_username>/profile

Cookie

signature=<cookie_signature>

Response Body

{
  "auth": "107302356-1689322872-64777db2cbccaed15be87757dc93cf7139b5ad020dfba8ab2b943c1b0f8f25a8",
  "success": 1,
  "data": {
    "contact": "<user_name>",
    "city": null,
    "custom1": null,
    "services": [
      "imap",
      "pop",
      "smtp",
      "spam",
      "ftp",
      "website"
    ],
    "zip": null,
    "custom2": null,
    "created": "2021-02-18 18:03:09",
    "custom3": null,
    "phone2": null,
    "uid": "163972",
    "secret_a": null,
    "company": null,
    "street2": null,
    "account": 19172,
    "phone1": "+1 781 725 0250 x1330",
    "last_access_date": "2023-07-14 07:07:26",
    "email1": "<account_email>",
    "flags": [],
    "fax": null,
    "secret_q": null,
    "street1": null,
    "country": null,
    "disk_quota": -1,
    "email2": null,
    "state": null,
    "disk_used": "0.002"
  }
}

Step 2

If the channel is configured to auto-suppress unsubscribes, RPI will query the suppression email table to identify and suppress any matching email addresses before generating the mail merge files.

Step 3

Create LuxSci template.

Method

PUT

Endpoint

https://rest.luxsci.com/perl/api/v2/user/<luxsci_username>/templates

Request Body

{
  "template_id": 0,
  "code_word": null,
  "title": "RPI_<QL if running queue listener><offertemplate_instance_id><channelexecution_id><3_characters_initial_channel_id><3_characters_client_id>",
  "subject": "<email_subject>",
  "body_html": "<html_content>",
  "body_text": "<text_content>",
  "format": "<both/html/text>",
  "sl_opt_in": true,
  "sl_opt_out": false,
  "sl_no_tls": "<true/false if secure message>"
}

Step 4

Use the Razor templating engine to render personalization and dynamic content to create the mail merge files.

Step 5

Files are batched based on the unique sets of content across HTML, Text, and Subject Line assets.

AND

Each batch file includes up to 1000 recipients, per the max allowed by LuxSci.

Step 6

RPI will loop through each of the files and initiate the send to LuxSci.

In cases where one or more batches failed to send, the workflow can be replayed again to pick up failed batches and retry to send the emails.

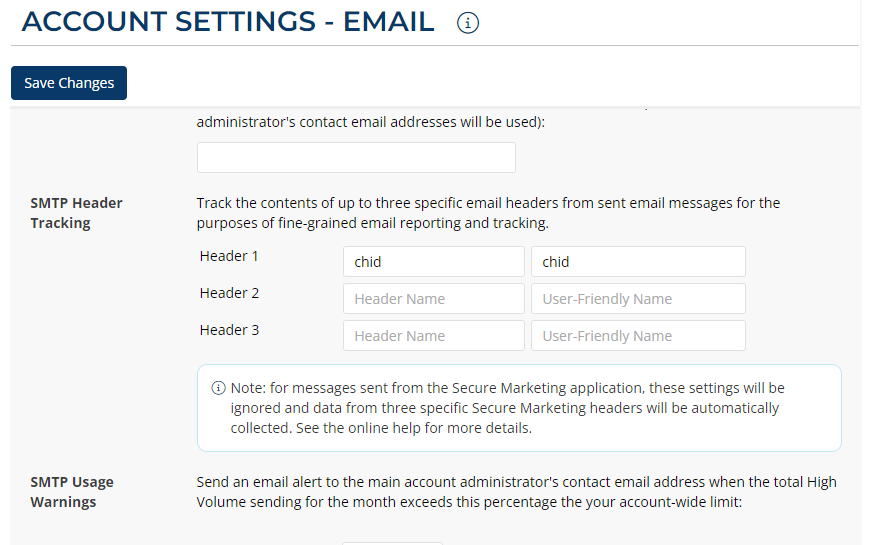

Email events are tracked by using header chid which can be configured in the LuxSci portal. chid value is formatted as <ChannelExecutionID>_<OfferTemplateInstanceID>_<ChannelID>_<RPContactID>.

Method

POST

Endpoint

https://rest.luxsci.com/perl/api/v2/user/<luxsci_username>/email/send

Request Body

{
  "message": null,
  "messages": [
    {
      "from_address": "dev@luxsci.net",
      "subject": null,
      "no_tls_only": 1,
      "body": null,
      "body_text": null,
      "to": [
        "<recipient_email>"
      ],
      "from_name": "Developer",
      "receipt": 0,
      "body_type": null,
      "bcc": null,
      "headers": [
        ["chid", "2790_2790_21f174d0fe8442a9acf096bbd437276c_1380076"],
        ["offername", "June Sales"],
        ["rpid", "M"]
      ],
      "reply_address": "dev@luxsci.net",
      "template": "330814",
      "template_data": {
        "EmailAddress": "<recipient_email>",
        "RPContactID": 1380076,
        "NameStyle": true,
        "Gender": "F",
        "SR_Female": "Y",
        "CustomerKey": 11507,
        "FirstName": "Isabella",
        "Customer_Key": 11507,
        "SR_Male_580": "N",
        "c64b8bcd80b646048ba7168e6631b74b0.1_dyc_html": "<smartasset_content>",
        "89b2b377169c460bae24f621bc8fe2330.3_dyc_html": "<smartasset_content>"
      },
      "template_data_raw": 1,
      "unsubscribe": 1
    }
  ],
  "sandbox": 0
}

Response Body

{
  "data": [
    "37IFXe008i13463",
    "37IFXe009i13463",
    "37IFXe00Ai13463"
  ],
  "success": 1,
  "auth": "107842778-1689694420-38859d84ffabf5cc11ed2522a9c0da8a5c3cd7e717c9d3a9143f4f3494ccc7b5"
}

Step 7

RPI will save the tracking id to table.

• Tracking ID format: <ChannelExecutionID>_<OfferTemplateInstanceID>_<ChannelID>

• Table: RPI_LuxSciTracking

Step 8

Delete LuxSci template.

If running queue listener, templates are persisted and deleted only once workflow is rolled back or Template retention period has elapsed as part of the housekeeping task.

Method

DELETE

Endpoint

https://rest.luxsci.com/perl/api/v2/user/<luxsci_username>/template/<template_id>

Response Body

{
  "auth": "107842778-1689694486-fbb0e71cfb3ed053db510446037af5ed63b8b7808c466b13f7674aba1e260886",
  "success": 1
}

Step 9

Once the sends are complete, the Interaction Log is updated with the total number of batch files that processed successfully/failed.

State data synchronization

The following steps make up the inbound process.

Step 1

If Import via file is checked, download email report for each event as follows:

• Sent

• Delivered

• Opened

• Clicks

• Feedbackloop

The following make up the Sent Request:

Method

GET

Endpoint

https://rest.luxsci.com/perl/api/v2/user/<luxsci_username>/report/email/smtp/sent?tracked_headers=true&first_row=0&matches=1&after_date=2023-07-18+08%3A38%3A02&header1=chid&header1_operator=like&header1_value=_<channel_id>

Response Body

{
  "success": 1,
  "data": {
    "matches_total": 6,
    "rows": [
      [
        "<luxsci_username>",
        "163972",
        "2023-07-18 15:33:40",
        "180.190.229.9",
        1,
        1,
        1455,
        "Test Email form diff table",
        "<sender_email>",
        "<recipient_email>",
        0,
        1,
        1,
        0,
        null,
        "37IFXe00Ai13463",
        "330814",
        "chid",
        "2790_2790_<channel_id>_1380076",
        "rpid",
        "M",
        "offername",
        "June Sales"
      ]
    ],
    "header": [
      "user",
      "user_id",
      "date_sent",
      "from_ip",
      "used_tls",
      "n_recipients",
      "size_bytes",
      "subject",
      "from",
      "to",
      "spam",
      "high_volume",
      "secureline",
      "opt_out",
      "notes",
      "sendmail_id",
      "template_id",
      "header1",
      "header1_value",
      "header2",
      "header2_value",
      "header3",
      "header3_value"
    ],
    "matches_returned": 1,
    "first": 3
  },
  "auth": "107848470-1689699603-7874819666f314612ef0db043a3c4d165a3c2286f0edfc6c4a818a2bd44d1551"
}

The following make up the Delivered Request:

Method

GET

Endpoint

https://rest.luxsci.com/perl/api/v2/user/<luxsci_username>/report/email/smtp/delivery?tracked_headers=true&first_row=0&matches=1&after_date=2023-07-18+08%3A38%3A28&header1=chid&header1_operator=like&header1_value=_<channel_id>&sent_date=0

Response Body

{
  "auth": "107848470-1689699604-bf0c207657faefa9a0b45559fbc62ca4965a1104282e28779faf38b75ff447b7",
  "success": 1,
  "data": {
    "matches_total": 8,
    "rows": [
      [
        "2023-07-17 08:16:16",
        "<luxsci_username>",
        "163972",
        "180.190.229.9",
        1,
        1734,
        "Link Metrics Testing",
        "<sender_email>",
        "<recipient_email>",
        "Delivered",
        "gmail-smtp-in.l.google.com said 'Sent (OK  1689581778 l23-20020a63ba57000000b005578c6a767esi11084815pgu.885 - gsmtp'",
        "2023-07-18 03:44:32",
        4,
        1,
        "TLSv1.3: cipher=TLS_AES_256_GCM_SHA384, bits=256/256",
        "37H8GG002i71587",
        "330654",
        null,
        1,
        3,
        0,
        "chid",
        "2787_2787_<channel_id>_1380067",
        "rpid",
        "M",
        "offername",
        "June Sales"
      ]
    ],
    "header": [
      "date_sent",
      "user",
      "user_id",
      "from_ip",
      "n_recipients",
      "size_bytes",
      "subject",
      "from",
      "to",
      "status",
      "details",
      "last_updated",
      "secureline",
      "tls_delivery",
      "tls_details",
      "sendmail_id",
      "template_id",
      "notes",
      "Opens",
      "Clicks",
      "Unsubscribed",
      "header1",
      "header1_value",
      "header2",
      "header2_value",
      "header3",
      "header3_value"
    ],
    "matches_returned": 1,
    "first": 0
  }
}

The following make up the Opened Request:

Method

GET

Endpoint

https://rest.luxsci.com/perl/api/v2/user/<luxsci_username>/report/email/smtp/opens?tracked_headers=true&first_row=1&matches=1&after_date=2023-07-18+05%3A17%3A06&header1=chid&header1_operator=like&header1_value=_<channel_id>&open_date=1

Response Body

{
  "data": {
    "matches_total": 2,
    "rows": [
      [
        "2023-07-17 08:16:16",
        "2023-07-17 11:58:46",
        "69.147.89.136",
        "YahooMailProxy; https://help.yahoo.com/kb/yahoo-mail-proxy-SLN28749.html",
        "admin@redpointglobal3.trial6.luxsci.net",
        "163972",
        "Link Metrics Testing",
        "dev@luxsci.net",
        "<recipient_email>",
        "Delivered",
        "37H8GG002i71587",
        "330654",
        "chid",
        "2787_2787_21f174d0fe8442a9acf096bbd437276c_1380067",
        "rpid",
        "M",
        "offername",
        "June Sales"
      ]
    ],
    "header": [
      "date_sent",
      "open_date",
      "opener_ip",
      "user_agent",
      "user",
      "user_id",
      "subject",
      "from",
      "to",
      "status",
      "sendmail_id",
      "template_id",
      "header1",
      "header1_value",
      "header2",
      "header2_value",
      "header3",
      "header3_value"
    ],
    "first": 0,
    "matches_returned": 1
  },
  "auth": "107848470-1689699628-7847ea8c44f21f92ef16e06f8c8e96f31c6dc9cd4a7c3988339b571772ac25d8",
  "success": 1
}

The following make up the Clicks Request:

Method

GET

Endpoint

https://rest.luxsci.com/perl/api/v2/user/<luxsci_username>/report/email/smtp/clicks?tracked_headers=true&first_row=0&matches=10000&after_date=2023-07-17+12%3A17%3A43&header1=chid&header1_operator=like&header1_value=_<channel_id>&click_date=1

Response Body

{
  "data": {
    "rows": [
      [
        "2023-07-17 08:16:16",
        "2023-07-17 12:17:44",
        "http://www.example.com",
        "180.190.229.9",
        "Mozilla/5.0 (Windows NT 10.0; Win64; x64) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/114.0.0.0 Safari/537.36",
        "<luxsci_username>",
        "163972",
        "Link Metrics Testing",
        "<sender_email>",
        "<recipient_email>",
        "Delivered",
        "chid",
        "2787_2787_<channel_id>_1380067",
        "rpid",
        "M",
        "offername",
        "June Sales",
        "37H8GG002i71587",
        "330654"
      ]
    ],
    "matches_returned": 3,
    "header": [
      "date_sent",
      "click_date",
      "url",
      "clicker_ip",
      "user_agent",
      "user",
      "user_id",
      "subject",
      "from",
      "to",
      "status",
      "header1",
      "header1_value",
      "header2",
      "header2_value",
      "header3",
      "header3_value",
      "sendmail_id",
      "template_id"
    ],
    "first": 0,
    "matches_total": 3
  },
  "auth": "107848470-1689699627-55b51c651b9d276e54fd01f6ab39d1749b3a9259be09eac5c3b805c1ee9048e1",
  "success": 1
}

The following make up the Feedback Loop Request:

Method

GET

Endpoint

https://rest.luxsci.com/perl/api/v2/user/<luxsci_username>/report/email/fbl?tracked_headers=true&first_row=0&matches=1&after_date=2023-03-31+15%3A26%3A19&header1=chid&header1_operator=like&header1_value=_<channel_id>

Response Body

TBU

Step 2

RPI will create a request export job to LuxSci. After LuxSci generates the report, it uploads them to the specified Report destination.

LuxSci currently supports SFTP as the Report destination.

Method

GET

Endpoint

https://rest.luxsci.com/perl/api/v2/user/<luxsci_username>/report/email/<smtp|fbl>/<sent|delivery|clicks|open>?tracked_headers=true&first_row=3&matches=3&after_date=2023-07-17+08%3A16%3A15&header1=chid&header1_operator=like&header1_value=_<channel_id>&destination=sftp&destination_directory=<sftp_folder>&destination_hostname=<sftp_hostname>&destination_password=<sftp_password>&destination_username=<sftp_username>

Response Body

{
  "auth": "107828390-1689671756-0e0c016f84000890eea2df6bd368cac3949d14b51193bd93f2d00a8f1a31adac",
  "success": 1,
  "data": {
    "current_jobs": 1,
    "filename": "1689671756-1485-20872.csv",
    "max_jobs": 2,
    "job_id": "310383"
  }
}

Step 3

RPI will create a request which monitors the export job. It checks whether the jobs status is completed or failed.

If the “max jobs” is already at the limit, RPI will wait 60 seconds to check again if there are available job slots to make the request. Job request will fail if the number of retries has reached the limit as imposed by Async report retry in the channel config.

Method

GET

Endpoint

https://rest.luxsci.com/perl/api/v2/user/<luxsci_username>/jobs

Response Body

{
  "success": 1,
  "data": [
    {
      "created": "2023-07-12 00:10:15",
      "status_detail": null,
      "updated": "2023-07-12 00:10:17",
      "completed": "2023-07-12 00:10:17",
      "current_jobs": 0,
      "filename": "1689120615-1484-3611676.csv",
      "uid": "163972",
      "completed_rows": 2,
      "job_id": "310022",
      "status": "complete",
      "max_jobs": 2,
      "expected_rows": 2,
      "hostname": "rs6020.luxsci.com"
    }
  ]
}

Step 4

After the export job has completed, RPI will download the LuxSci generated email report from the Report destination to the configure State results folder path.

Step 5

Once the report is downloaded, RPI will delete the file in the Report destination.

Step 6

Run a Redpoint Data Management (RPDM) job located in this path /RedPoint/Interaction/Import/Channels/Email/Load.LuxSci.EmailActivities in RPDM to import the email report to the configured Import table name.

Step 7

If the RPDM job has completed, delete the used files in the State results folder path.

During this process, any report files older than 7 seven days are also deleted.

Step 8

Email events are inserted to Offer History State table.

If OverrideOHStateTimestampUsingServerTimezone config is checked, event timestamp will display as local server time.

Step 9

HardFail, Failed, and Spam fulfillment state are loaded into suppression table.

Step 10

Email suppression list from LuxSci is downloaded and inserted into the suppression table.

Method

GET

Endpoint

https://rest.luxsci.com/perl/api/v2/user/<luxsci_username>/suppression

Response Body

{
  "data": [
    [
      "<recipient_email>",
      0,
      19172,
      28594,
      "163972",
      "2022-10-10 08:59:28",
      "Unsubscribe link used from 180.190.31.26"
    ]
  ],
  "success": 1,
  "auth": "107828390-1689671825-a9ba790e94f3605e73f8429948a91d255e8b41729edc11b2fea2427d6050e874"
}

Step 11

Update the state and metrics count.

LuxSci configuration

The following section provides the pre-requisite steps for configuring LuxSci to work with RPI.

To create tracking header:

1. In a web browser, navigate and log in to Luxsci.

2. Navigate to Administration Home>Admin Settings>Outbound Email>Settings.

3. Under Account Settings - Email panel, scroll down to SMTP Header Tracking and add chid as the Header 1. The chid header will contain specific information when emails are sent to track email events.

4. Select Save Changes.

Performance testing

Test environment

Performance testing was last performed in August 2023 using the environment below:

Redpoint Interaction

• 2 VMs with 8 cores and 32GB of memory

• 2 nodes

• Azure SQLDB elastic pool instance for the marketing and ops database

Redpoint Data Management

• 1 VM with 4 cores and 16GB or memory

Snowflake

• Snowflake Client (v7.28)

• Snowflake ODBC driver (3.00.02.00)

LuxSci

• Server Name: rs7392.luxsci.com (API Server)

  • Server Type: Oracle Cloud

  • Public IP: 129.146.161.64

  • Private/Local IP: 10.10.0.102

  • CPU: 4 cores

  • RAM: 16 GB

  • Operating System: Linux v8.7 64bit

  • LuxSci Software: v23.1.3

  • Apache: v2.4.54PHP: v8.0.26

  • MariaDB: v10.4.27

  • ProFTPd: v1.3.7f

  • ClamAV: v1.0.0

  • OpenSSL: v1.1.1s

• Server Name: rs7393.luxsci.com (SMTP Server)

  • Server Type: Oracle Cloud

  • Public IP: 162.142.76.112

  • Private/Local IP: 10.10.1.113

  • CPU: 2 cores

  • RAM: 16 GB

  • Operating System: Linux v8.7 64bit

  • LuxSci Software: v23.1.3

  • MariaDB: v10.4.27

  • ClamAV: v1.0.0

  • OpenSSL: v1.1.1s

Volume test results

The Contact Personalization reflects the time to create the batch within Redpoint Interaction on an environment scaled as indicated above. The Luxsci Batch Upload time reflects the time to process the batch within the vendor (outside of Redpoint Global) and will vary based upon your subscription with Luxsci. Testing was done on their shared testing instance, which should be slower than your private testing instance.

Batch sends

Concurrent sends

Inbound processing

Limitations

Logging

Below is an example of the Interaction log for an offer using the LuxSci channel:

FAQ

What if “Invalid seed email(s)” are reported even if the email addresses are valid?

Make sure that the attribute used as Recipient email in channel admin or Recipient Email Attribute Override in email offer is present as one of the seed attributes.

What if metrics are missing when executing Queue Listener using Snowflake DB?

Using uppercase or mixed case as email address when executing Queue Listener will result to missing metrics when using Snowflake DB because it compares string as case sensitive. Make sure to use lowercase email address when executing QL in Snowflake DB.

Which error codes are retry-able?

• Timeout

• ConnectFailure

• SecureChannelFailure

• ProtocolError

• ReceiveFailure

• NameResolutionFailure

• SendFailure

• ServerProtocolViolation

• KeepAliveFailure

• GatewayTimeout

• BadGateway

• ExpectationFailed

• RequestTimeout

• NotFound

• ServiceUnavailable

• TooManyRequest

What is the current re-try strategy employed if API requests to LuxSci fail?

If API request fails, LuxSci connector employed Exponential Backoff re-try strategy.
Normally, the interval of each attempt will exponentially be increasing the waiting time e.g., 1s, 2s, 4s... etc. until the max retry count has been reached. The number of attempts is configurable via API Call max. retries setting in LuxSci channel with default value of 10.

Do we enforce any specific encoding on any of our asset types?

No.

What specific encoding do we use when communicating with LuxSci?

UTF-8

Additional resources

• Email service provider: LuxSci

• LuxSci Email
