Admin: Plugins

Overview

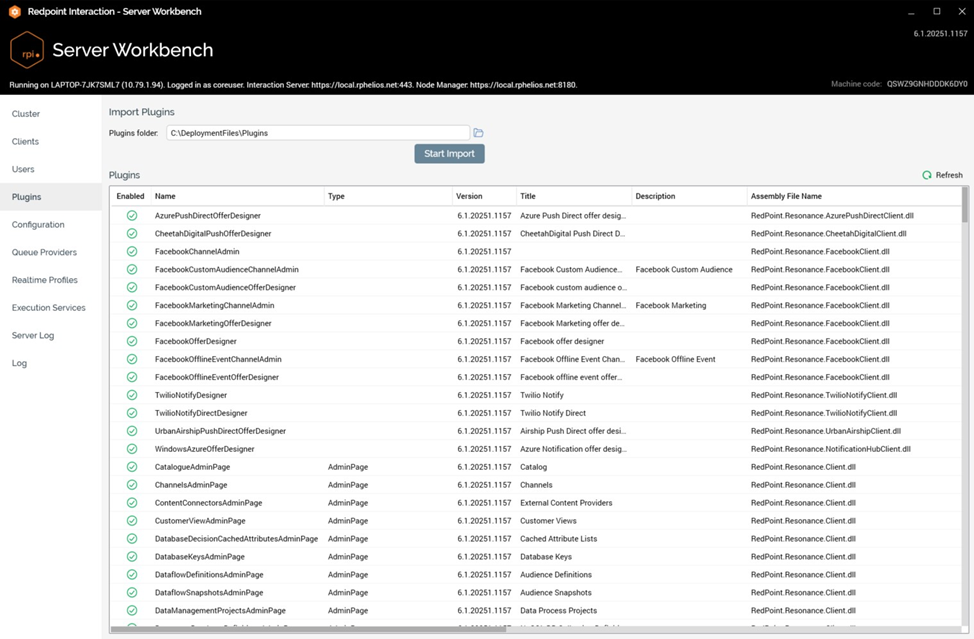

Server Workbench includes a Plugins tab that allows you to view details of the suite of plugins loaded at the current RPI instance.

The tab also allows you to upload new plugins into the cluster.  It consists of the following:

Import Plugins Section

This section allows you to upload plugins into the cluster.  It contains the following:

• Plugins folder: you can specify the Windows file system folder in which the new plugins are to be found either manually or by browsing.

• Start Import: this button is enabled when a Plugins folder has been specified.  Clicking it starts the import of the plugins in the selected folder and displays an “Importing” icon.

Following the importation of plugins, an Import Results overlay is displayed: The overlay contains a grid with the following columns: o Loaded o Filename o  Error Message

Note that you cannot load a plugin if its version number is lower than the version already in the cluster.

The Plugins tab can also be used to upload a new license file to apply to the RPI installation. Plugins Section

This section contains a toolbar and a plugins list.

Plugins Toolbar

Clicking the Refresh button loads the latest plugin information from the core operational database.

Plugins List

All plugins in the current RPI cluster are listed in a read-only grid.  The following columns are shown:

• Enabled

• Name

• Type

• Version

• Permissions

• Title

• Description

• AssemblyFileName

• AssemblyName

• QualifiedName

• XAMLFileName

• ID
